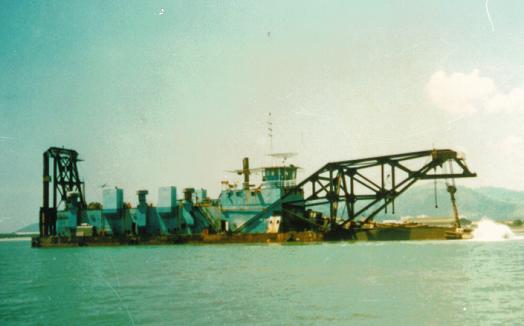

8,000 hp Cutter Suction Dredger

Vessel Name:

Sea Diamond

Type:

Two Inboard Pump with Basket Type Cutter

Principal Dimensions

Length Over All / Hull :

77.0 m (incld. protrusions)

53.34 m

Breadth (mld):

14.02 m

Depth (mld)/ Draught (mld):

 4..04 m

2.20 m

Machinery Data

Total Installed Power:

8,000 hp

Dredge Pump / Cutter Power:

5,000 hp

800 hp

Main Pump Engine:

2 x 2,438 hp @ 1,000 RPM

Main Generator Engine:

1,725 hp @ 900 RPM (Port Side)

Auxiliary Generator Engine:

1,000 hp @ 900 RPM (Starboard Side)

Dredging Capacity

Nominal Dredging Capacity:

1,000~1,200 m³/hr

Nominal Pumping Distance:

Nominal 3,000 m  (2 pumps in series)

Pipe Line Diameter

f750 mm

Dredging Depth

 20.0 m (Max.)

Dredge Pump Data

Suction Pipe Diameter:

f800 mm

Discharge Pipe Diameter:

f750

Dredging Equipment

Cutter Dimensions

f3,000 x Length 2.00 M

Cutter Speed

15~30 RPM @ Const. Torque/13~34 RPM @ Const. Power

Winch Power

120 hp

Other Information

Gross/Net Tonnage

847 /  816

Flag/Registry

Honduras

Displacement:

2,720 tons

Country of Build / Year Build :

Singapore

1976
