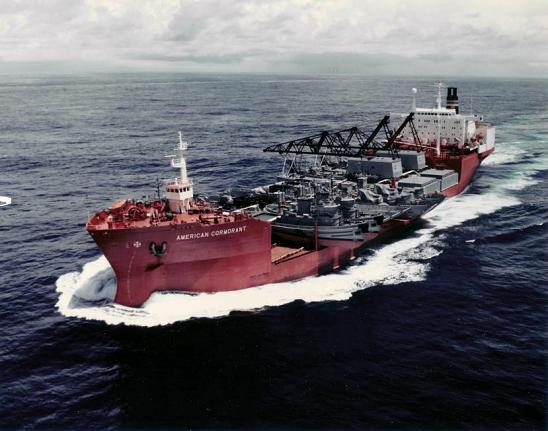

Semi-Submersible Heavy Lift Ship |
||
|
|
||
Vessel Name/ ex Vessel Name: |
ASIAN ATLAS |
AMERICAN CORMORANT |
|
Type: |
Semi-Submersible Heavy Lift Ship |
|
|
Flag / Port of Registry |
Seychelles |
Port Victoria |
|
Official No. / Call Sign |
50169 |
S7TY |
|
GRT/NRT |
38,571 tons |
11,571 tons |
|
Suez GRT / NRT |
40,643.08 tons |
33,216 tons |
|
Deadweight /Displacement |
52,092 tonnes |
70,691 tonnes |
|
Built / Rebuilt |
1975, Eriksberge |
1982, Gotaverken |
|
Principal Dimensions |
||
|
Length O. A./L.B.P.: |
225.06 M |
213.90 M |
|
Breadth (mld): |
41.15 M |
|
|
Depth (mld)/ Draft (mld): |
13.55 M |
10.55 M |
|
Submerged Draft |
20.07 M |
|
|
Machinery Data |
||
|
Main Engine: |
1 x B&W Type 10K84EF 19,700 bhp @ 100 RPM |
|
|
Ship Service Diesel Generators |
3 x 1,120 KVA NEBB Gen / Bergen LDG-9 @ 729 RPM |
|
|
Bow Thruster DieselGenerators |
1 x 1,575 KVA AvK Gen / MAN 16V 20/27 @ 900 RPM |
|
|
Speed: |
Max: 16 knots |
Service: 14 knots |
|
Fuel Consump. (IF-380/MDO): |
69 tons/ 2 tons @ 14 knots Avg. Cons. Sea (Loaded/Light) |
|
|
Bow Thruster: |
2 (fore & aft) x f2.4 M C.P.P. driven by 1,600 KW electric motor |
|
|
Boilers |
2 x OilFired 32.5 T/H at 14 kP/cm2, 1 x Exhaust Gas |
|
|
Ballast Pumps |
4 x 3,000 M3/hr + 1 x 2,000 M3/hr Vert. Centrifugal |
|
|
Deck Area/Load Capacity: |
119.8 Lx 41.15 W, 4,800 M2 |
22 t/M2 calm/14 t/M2 transport |
|
Completement |
8 Officers/11 Ratings |
12 Charters/Support Personnel |
|
Submerge/Deballast Time: |
12 hrs |
12 hrs |
|
Crane/Lifting Equipment |
1x 40 T x 28 M aft, 1 x 3 T x 5 M fwd,1 x 5 T Fork-Lift |
|
|
