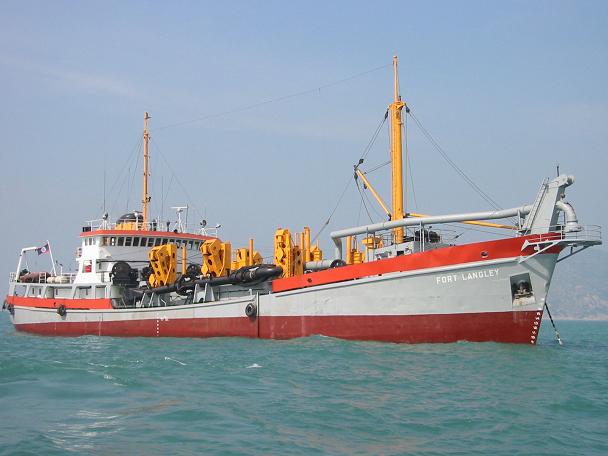

Trailer Suction Hopper Dredger

Vessel Name:

Fort Langley

Call Sign : V3PH6

Type:

Self-propelled twin screw with twin inboard pumps  & suction pipes

Principal Dimensions

Length Over All/Length , (B.P.):

72.50 m

67.68 m

Breadth (mld):

13.72 m

Depth (mld)/ Draught (mld):

5.79 m

4.80 m

Machinery Data

Main  Engine:

2 x 2,400 hp @ 1,000 RPM MCR (General Electric)

Main Generator Engine:

2 x 1,020 kw x 600 V x 1,700 A D.C. @ 1,000 rpm (Smit)

Maximum Speed:

11.5 knots

Fuel Consumption:

approx. 8 tons (dredging)  to 11.5 tons per day  (steaming)

Bow Thruster:

N.A.

Dredging Capacity

Hopper Capacity:

1,000 m³

Dredging Depth:

15.3 m

Dredge Pump Data

Type/Size:

2 x Centrifugal  f650 mm suction/ f 650mm discharge

Pump Power :

2 x 535 hp @ 250 RPM

Pump Capacity:

2 x 5,000 m³/hr @ 18 m

Dredging Equipment

Drag Head:

2 Adjustable IHC type

Swell Compensator

2 fitted

Barge Loading Connection :

f650 mm pipe

Other Information

Registry

Belize (Official No. IMO  5118125)

Class:

Belize

Gross/Net Tonnage:

1,847 tons / 554 tons

Deadweight

2,200 tons @ 4.80 m draft
