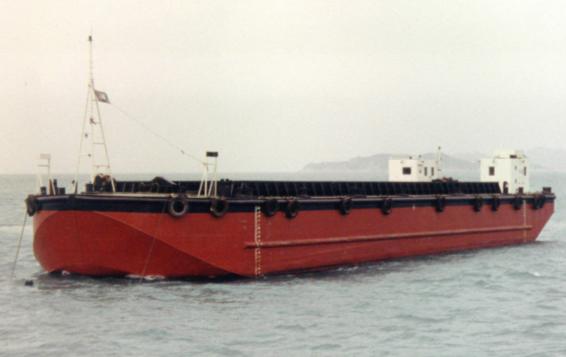

1,000 m³ Non Self-Propelled Split Hopper Barges

Vessel Name:

TBN

Call Sign :

Type:

Non Self-propelled split hopper barge

Principal Dimensions

Length Over All ::

48.60 m

Breadth (mld):

12.80 m

Depth (mld)/ Draught (mld):

4.50 m

3.80 m

Machinery Data

Main Hydraulic Pump Engine:

1 x 40 hp @ 1,500 RPM (China)

Split Hydraulic Cylinders:

2 x f 450 mm  Piston x f 220mm Rod x 2,400 Stroke

Working Pressure

Split Hydraulic : 320 bars

Mooring : 160 bars

Anchor Windlass:

3.5 ton x 8 m/min

Anchor:

1 x 750 kg Stockless Bower Anchor

Hydraulic Capstan:

3.0 ton x 15 m/minute

Hopper Capacity

Hopper Capacity:

1,000 m³

Hopper Plate Angle:

38° Closed

58 ° Opened

Hopper Maximum Opening

24 m x 3.1 m

Fuel Oil Capacity:

35  tons

F.W. Capacity:

22 tons

Hopper Plate Thickness

24 mm

Other Information

Registry

Hong Kong

Class:

Hong Kong Marine Department

Gross Tonnage / Net Tonnage:

820 tons / 262 tons

Deadweight

1,800 tons @ 3.80 m draft

Country of Build / Year Build :

People’s Republic of China

1993
